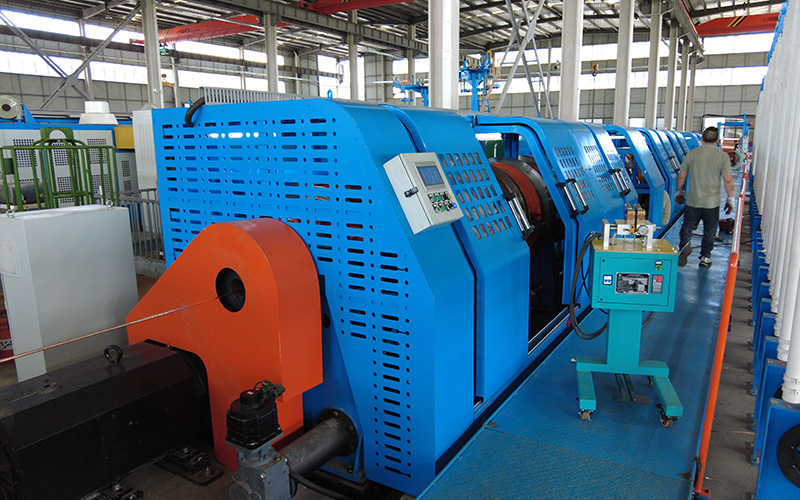

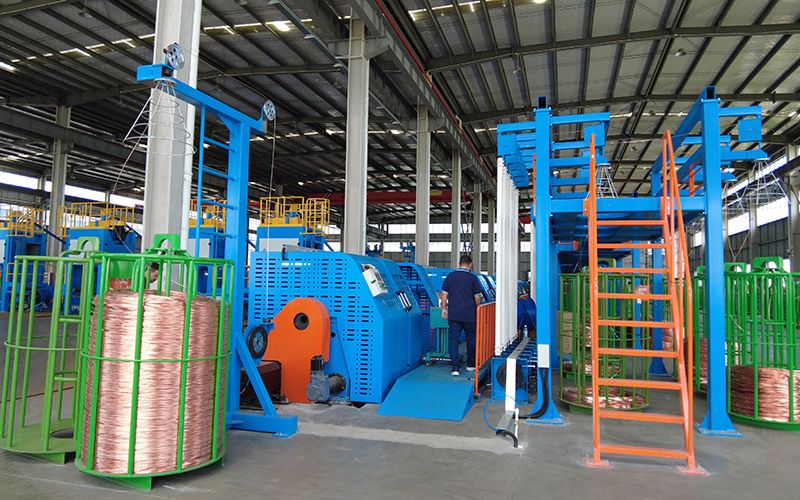

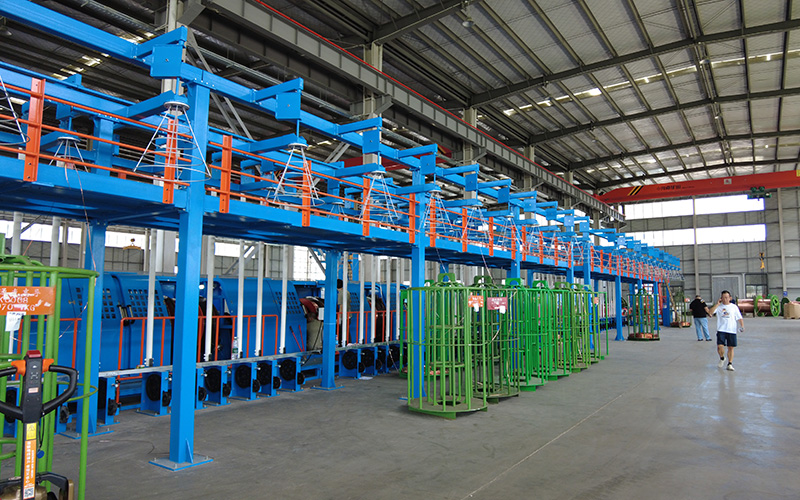

Concentric Stranding Machine

Application:

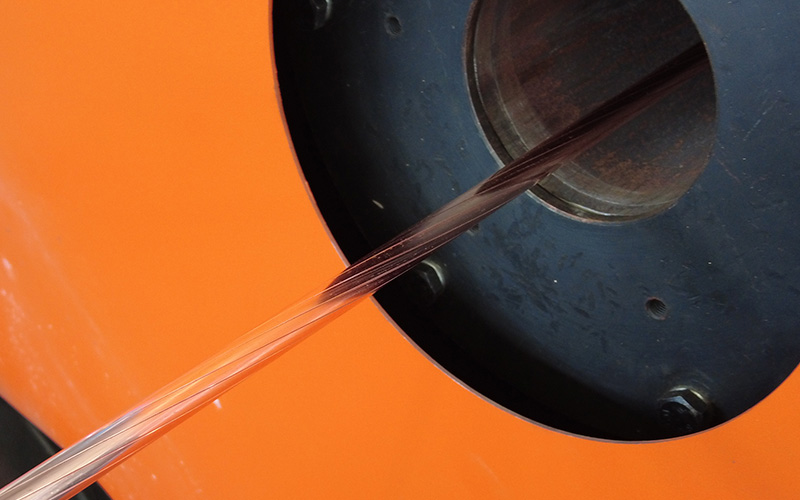

Mainly used for copper, aluminum circular conductor stranding and drawing or fan-shaped conductor stranded pressure and steel core aluminum strand, aluminum alloy strand.

Main Technical Parameter:

1. Machine is designed for no-back-twist stranding and pressing of circular and sector shaped copper, Aluminum and ACSR conductors.

2. Machine with good frame structure rigidity, contributing to high running speed, fast and convenient loading, no turnover spool and etc.;

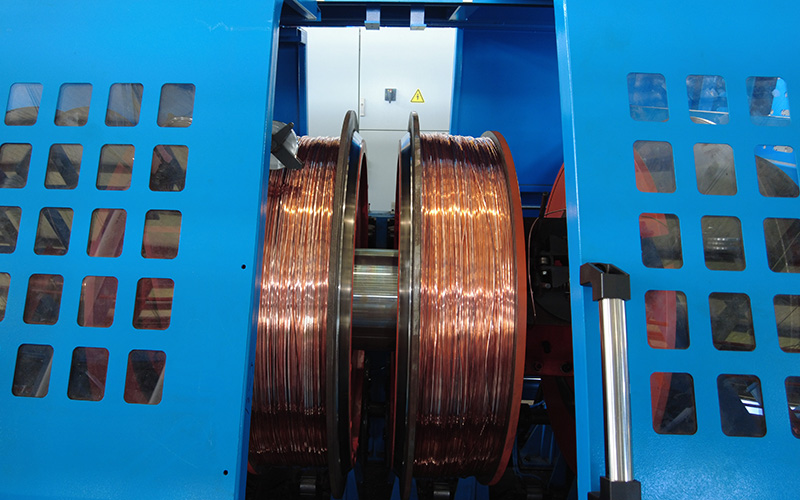

3. One wire per bobbin, plus simple and stable tension control, and the maximum operating line speed reaches 3 times that of the frame rigid stranding line;

4. Machine with automatic wire-break detection function will stop immediately when there is wire breaks;

5. PLC control is adopted, providing stable operation, reliable performance and high degree of automation.

CONTROL SYSTEM:

1. Main transmission and driving system by Siemens S120;

2. The machine is controlled by Siemens PLC S7-1200 or 1500 series based on the customer's requirements and operated on a touch screen(10.4＂Siemens).

3. The electrical system has a completely automatic safeguard.

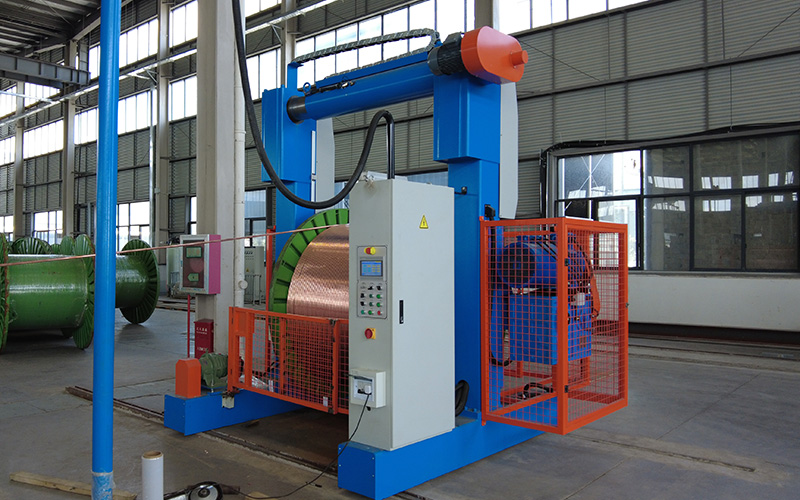

4. Overload of take-up protection;

5. Low-air pressure protection;

6. Wire-breaking stop.

Technical arameter

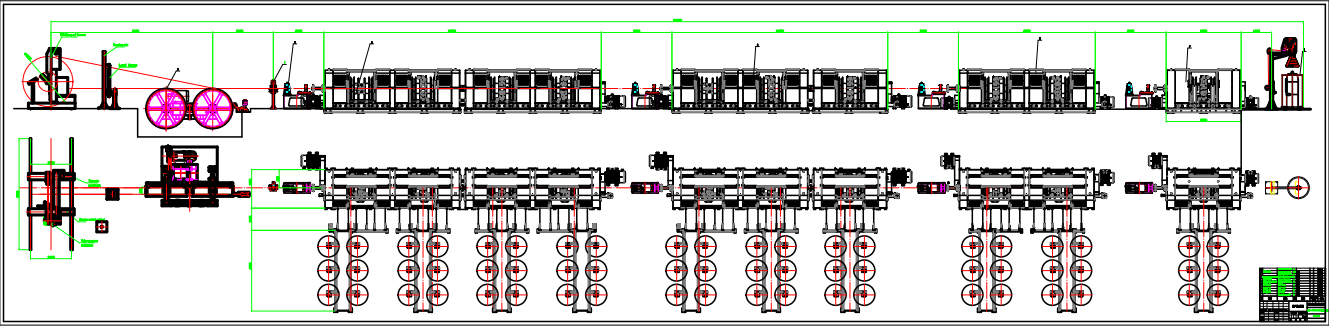

Layout of concentic stranding machine:

Our Customers:

Customer Feedback:
