630/710 Rigid Stranders

Product details

Rigid Stranding Machine

Main Features:

1. The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors.

2. Each stranding cage is individually driven by a motor, which is independently controlled, with rotating speed separately adjusted, through toothed pulley.
3. Provided with batch loader to load and unload the bobbins altogether.

4. Equipped with constant tension control system and intelligent brake system.

Main Technical Date:

Machine Model	500, 630, 710, 800 bobbin
Diameter Of Single Wire	Copper	Φ1.5～Φ4.5mm
	Aluminium	Φ1.8～Φ5.0mm
	Aluminum Alloy	Φ1.5～Φ4.5mm
Cage Rotating Speed	6 Bobbin	220RPM
	12 Bobbin	200RPM
	18 Bobbin	190 RPM
	24 Bobbin	170 RPM
	30 Bobbin	140 RPM
	36 Bobbin	120 RPM
	42 Bobbin	100 RPM
	Φ1.7～Φ4.5mm	Φ1.7～Φ4.5mm
Lay length	Steplessly Adjustable
Bobbin Size in Stranding Cage	PND500, PND630, PND710,
Dual Wheel Capstan	2000mm to 3200mm

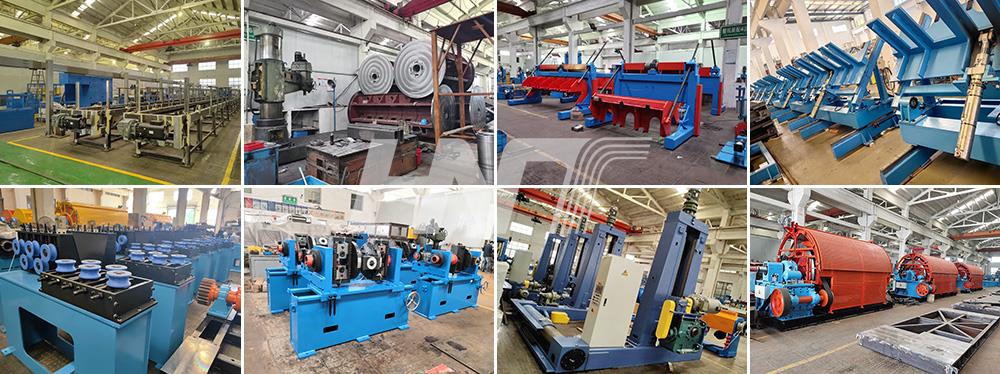

Production Workshop:

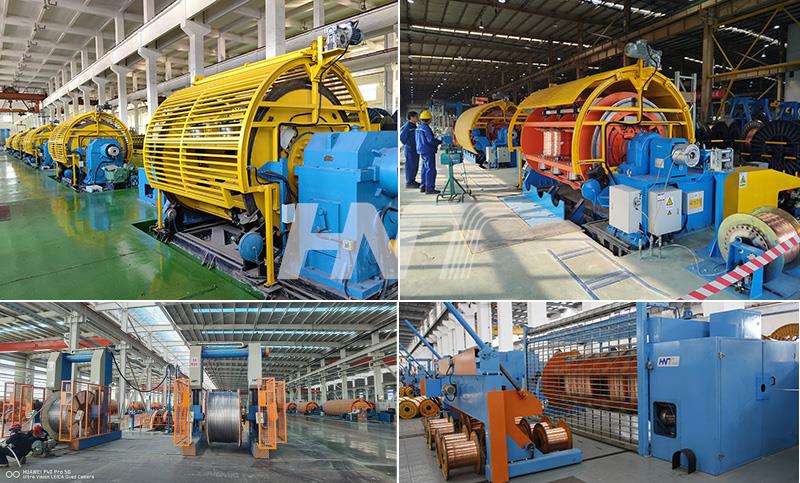

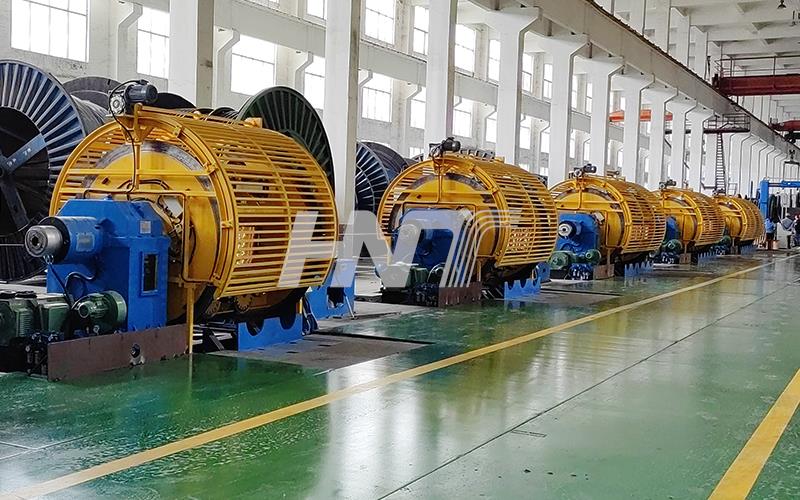

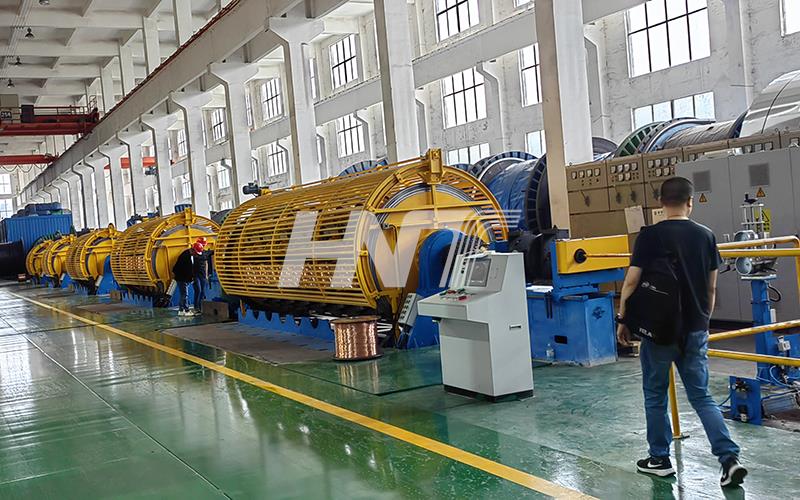

Rigid Strander Line In Operation:

Our Customers:
