Rigid Frame Strander

Product details

Rigid Frame Strander:

The machine (with lumped loading device) is suitable for producing large length, compact ,bare Al/Cu wire, and ACSR, aluminum alloy wire and sector conductor. The machine is driven by separate motor for each cage and dual capstan; the stranding pitch can be adjusted by Touch screen.

Line Main Parts:

Payoff	1set
Wire Guider	1set
Stranding cage 6B,12B, 18B, 24B, 30B, 36B	Each 1set
single wire pre-twisted	Each 1set
Wire Closing and Press mold base	Each 1set
Meter Counter	1set
Double wheel capstan 2000/2500	1set
Side/bottom Lumped loading system	3set
Take up	1set
Electric control system	1set

Main Technical Date:

Machine Model	JLK-630	JLK-710
Single Copper Wire Dia.	Φ1.7～Φ4.5mm	Φ1.7～Φ4.5mm
Single Alumium Wire Dia.	Φ1.8～Φ5.0mm	Φ1.8～Φ5.0mm
Single Alumium Alloy Wire Dia.	Φ1.7～Φ4.5mm	Φ1.7～Φ4.5mm
Max. stranded wire dia.	Φ30-55mm	Φ30-55mm
Lay length	40～350mm(step-less adjust)	40～350mm(step-less adjust)
Max rotate speed	500rpm	500rpm
Max line speed	100m/min	100m/min
Max rewinding speed	150～200m/min	150～200m/min

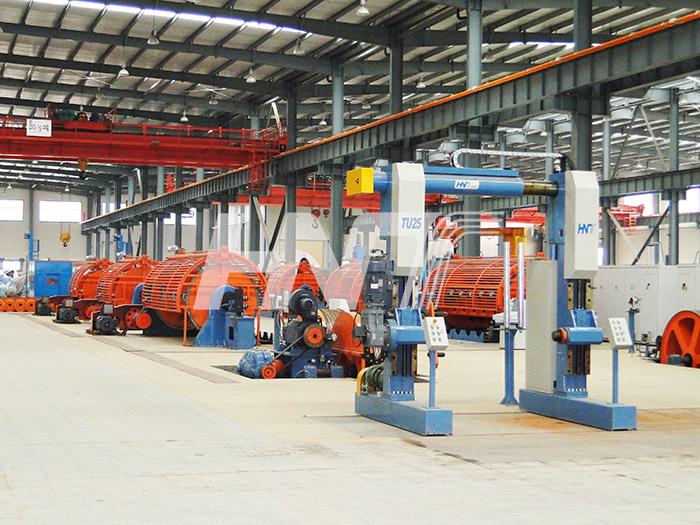

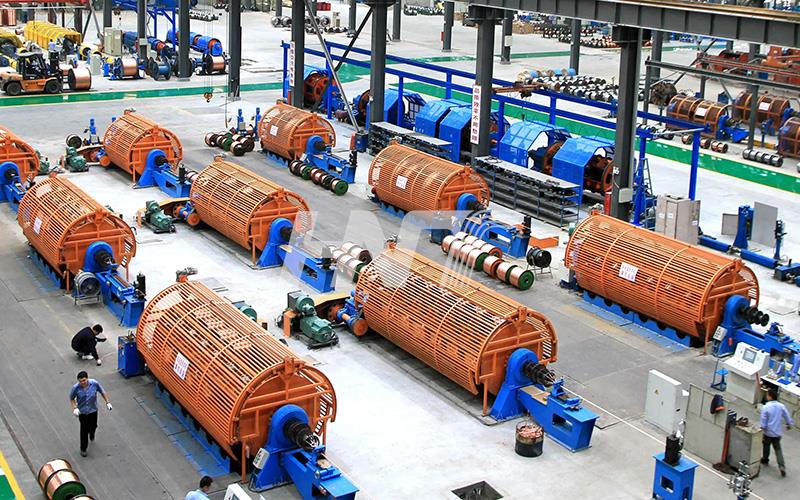

Rigid Stranding Machine Production Workshop:

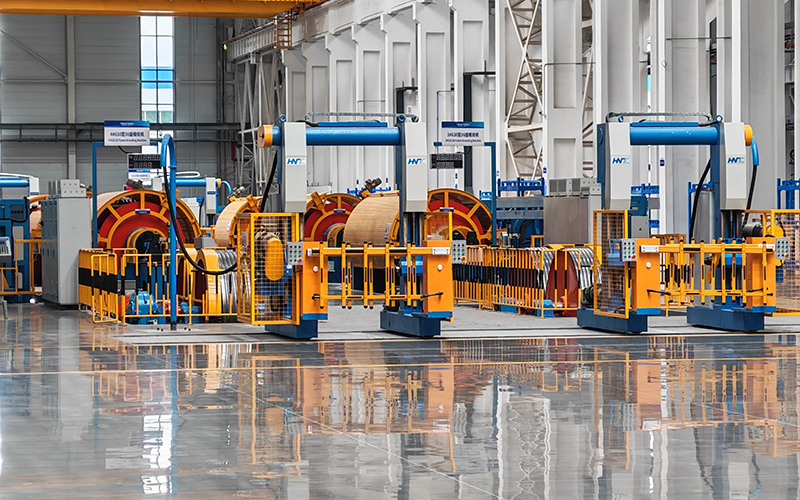

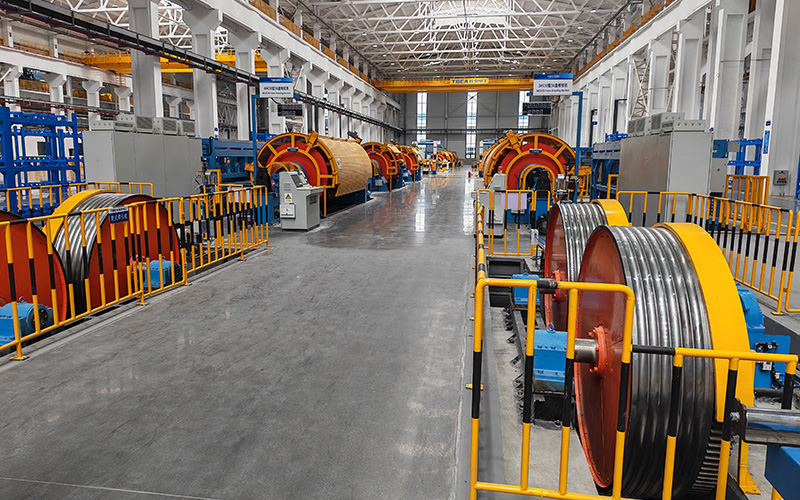

Machine Running in Customer's Plant:

Exhibition in Düsseldorf, Germany：

Brazil Exhibition：

Shanghai, China Exhibition:
