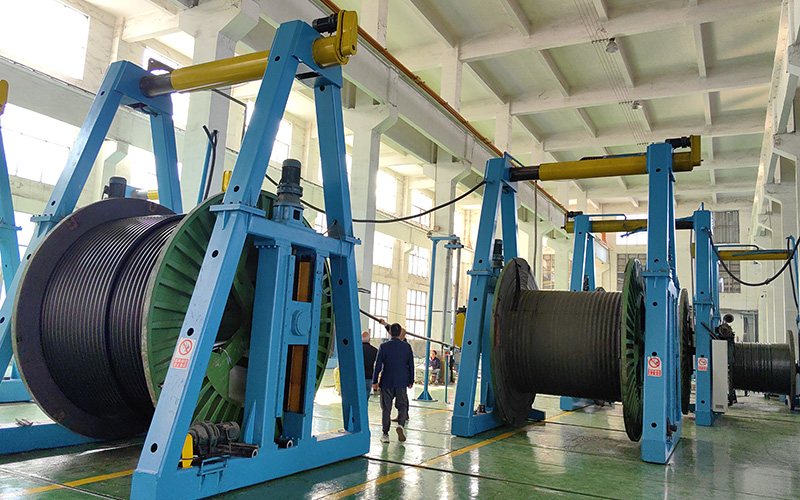

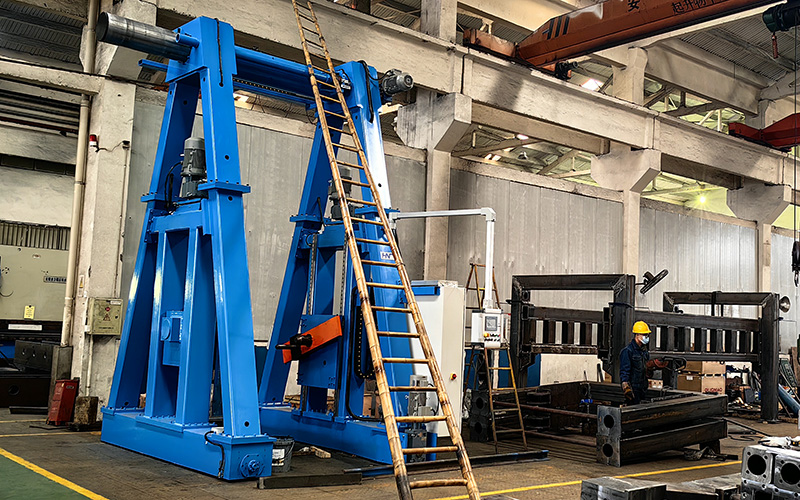

A Type Payoff | Take up

The Take-up is the AC motor drive the gearbox to drive the bobbin, and the gearbox is infinitely variable; Siemens 200 PLC+ imported Siemens governor is used to control the motor operation. The traverse pitch and bobbin information can be input in the control panel, PLC control with coil diameter calculation function can automatically control the tension and reverse direction. The motor drives the traverse to reduce the gear box and the guide wheel, to control the pitch of the traverse, and the gear box is directly connected to the traverse shaft;

2 method of the take-up control: torque control and speed control, which can be manually switched.

Brake: with pneumatic butterfly brake, solenoid valve control.

Technical Parameter:

Type	TUA25	TUA32	TUA36	TUA42	TUA50
Reel Dia.	1250/2500	1600/3200	2000/3600	2500/4200	2500/5000
Max. Flange Dia.(mm)	2500	3200	3600	4200	5000
Min Flange Dia.(mm)	1250	1600	2000	2500	2500
Min Overall Width(mm)	900	1180	1500	1900	1900
Max. Overall Width(mm)	1900	2120	2300	2400	2500
Min. Barrel Dia.(mm)	500	800	2500	2800	3000
Bore(mm)	80(100-125)	80(100-125)	200	200	200
Min. Wire Dia. (mm)	7	8	20	30	40
Max. Wire Dia.(mm)	70	120	140	160	180
Max. Rotation Speed(RPM)	7/17/37	7/17/37	6/12/22	6/12/22	6/12/22
Traverse range(mm)	8-90	9-120	20-140	30-160	40-180
Max. Reel Weight(KG)	12000	18000	25000	30000	40000

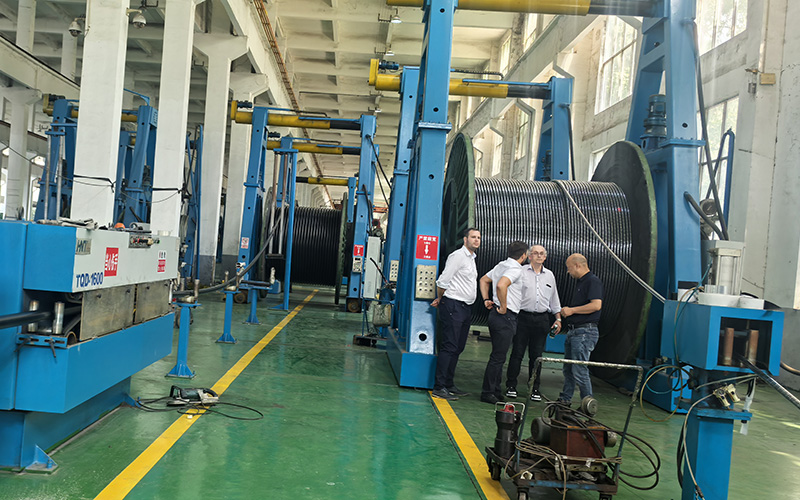

Our Customers:
