630 Magnetic passive double reel pay-off

Product details

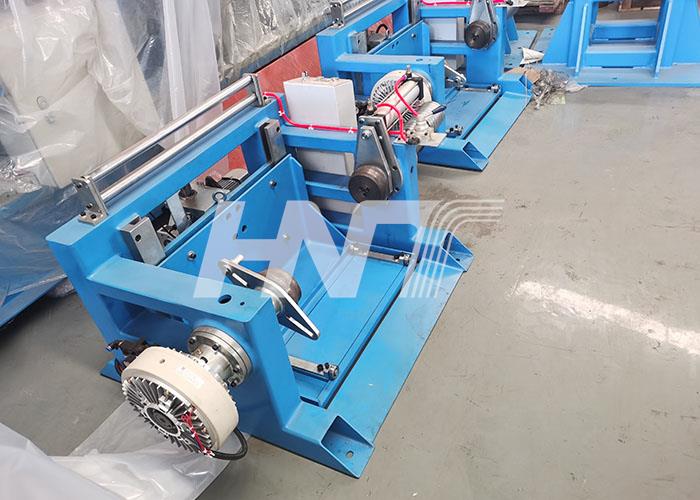

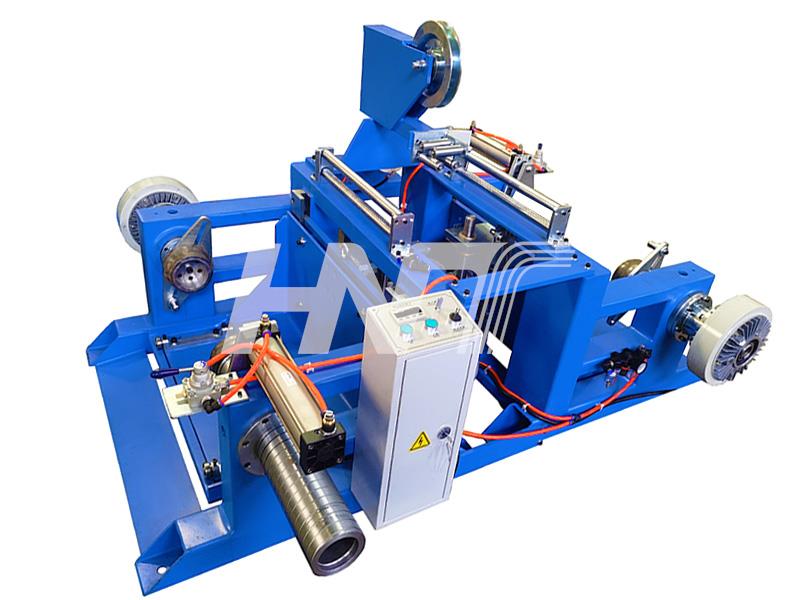

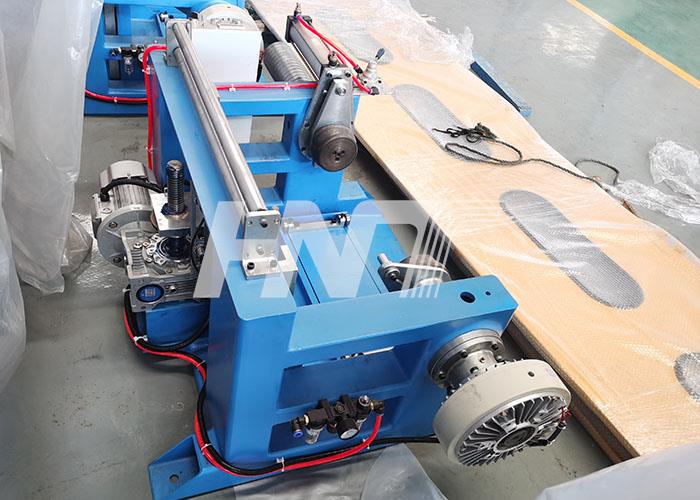

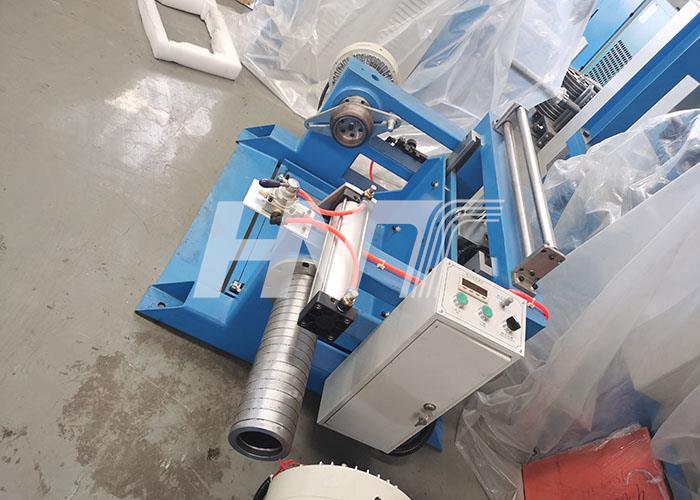

φ630mm Magnetic passive double reel pay-off

1. Machine can connect with the extrusion line or cable coiling and packing machine;
2. Machine type: Shaftless;
3. Application Bobbin:φ630mm;
4. Lifting Method: AC Geared motor +Screw lift;
5. Pintle Clamping type: by pneumatic;
6. Magnetic control to stop wire payoff.

Single Pay-off Specification

Model	Inner diameter (mm)	Outer diameter (mm)	Max load (kg)
PF-1000M	630 - 1000	300 - 750	1500
PF-1250M	800 - 1250	450 - 950	2500
PF-1600M	1000 - 1600	600 - 1200	4000

Double Reel Pay-off Specification

Model	Inner diameter (mm)	Outer diameter (mm)	Max load (kg)
PFS-630M	400 - 630	300 - 475	600
PFS-800M	630 - 800	475 - 600	1000
PFS-1000M	800 - 1000	600 - 750	1500
PFS-1250M	1000 - 1250	750 - 950	2500
