3x70 VVF Tandem Extrusion Line

Product details

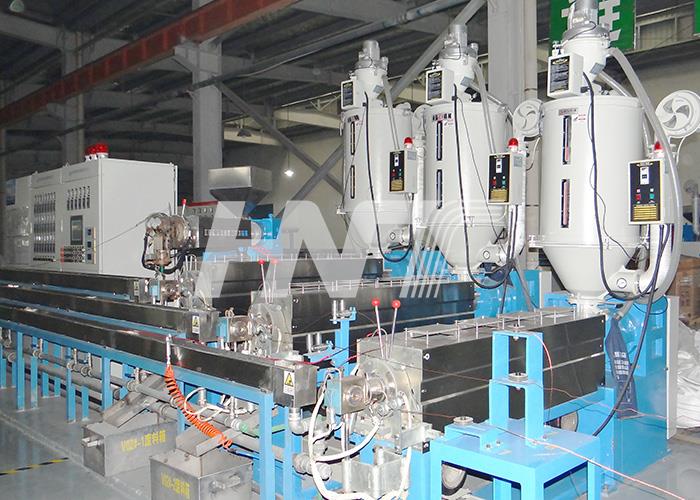

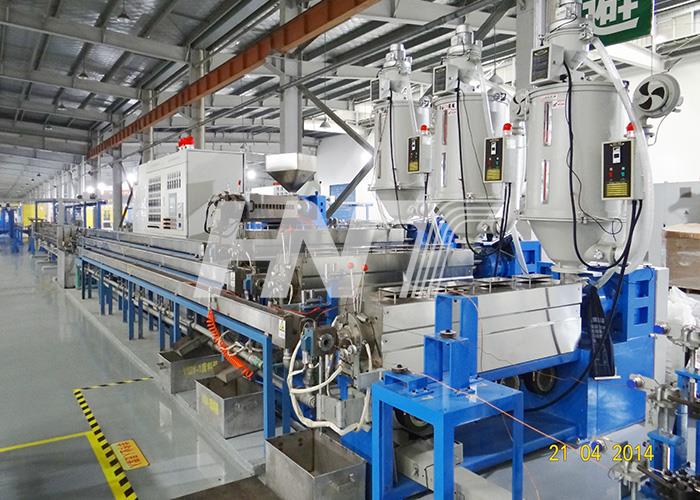

3x70 VVF tandem extrusion line

Description

1. VVF tandem extrusion line is used for manufacturing building wires;

2. The line has PLC built-in and touch screen for control, easy to operate and user friendly;

3. Different coiling and packing methods are available on customer requirements;

4. The PLC mode has already stored various wire settings, if the user would like to manufacture a different size of wire, simply load a new wire setting, and the machine will be ready to operate ;

5. Three lines integrated and combined into the same line, saving place and labor;

6. Automatic fault detecting system is built-in to warn operators and show fault information on touch screen once a problem occurs.

Extruder Function:

Line Technical Parameter:

Dia. Of copper	No. of cores	Insulation Thickness	sheathing thickness	Dia. Of product		Length	Weight	Production speed
Dia. Of copper	No. of cores	Insulation Thickness	sheathing thickness	Short Dia.	long Dia.	Length	Weight	Production speed
1.6 mm	2	0.8mm	1.5mm	6.2	9.4	100m	100kg/km	220m/min
1.6mm	3	0.8mm	1.5mm	6.2	12.6	100m	140kg/km	180m/min
2.0mm	2	0.8mm	1.5mm	6.6	10.2	100m	125kg/km	220m/min
2.0mm	3	0.8mm	1.5mm	6.6	13.8	100m	180kg/km	170m/min
2.6mm	2	1.0mm	1.5mm	7.6	12.2	100m	190kg/km	130m/min
2.6mm	3	1.0mm	1.5mm	7.6	16.8	100m	275kg/km	130m/min

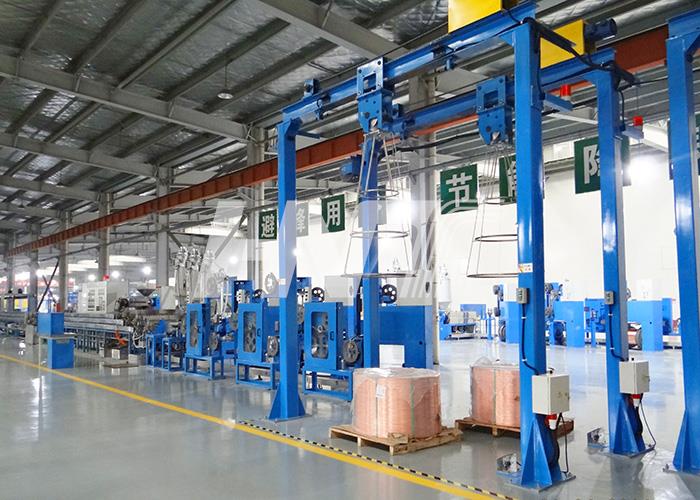

Line Take-up Method:

Our Customer:

Customers' Feedback:

Cutomers-feedback
